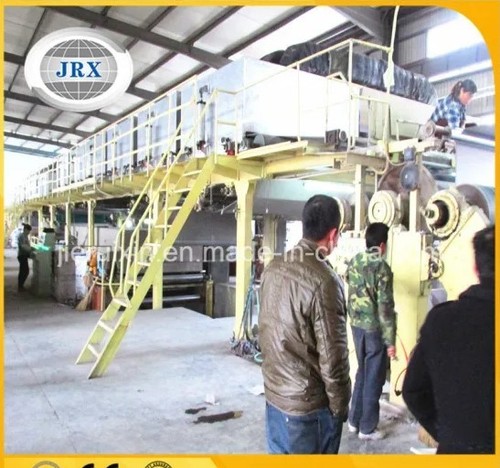

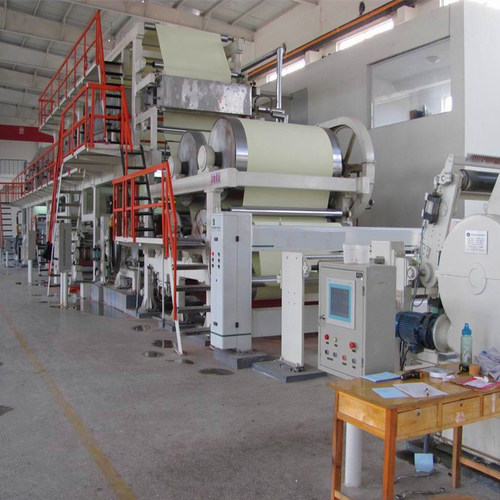

Paper Coating Machine

Paper Coating Machine

Product Details:

  • General Use PAPER COATING
  • Type Powder Coating Machines, Paper Coating Machine, Industrial Coating Machine
  • Coating Head Gravure Roller
  • Coating Material Bopp Film
  • Computerized Yes
  • Control System PLC Control
  • Humidification System Yes
100000.00 - 20000.00 USD ($)/Set
X

Price And Quantity

  • 100000.00 - 20000.00 USD ($)/Set
  • 1 Set

Product Specifications

  • Bopp Film
  • Yes
  • PLC Control
  • Powder Coating Machines, Paper Coating Machine, Industrial Coating Machine
  • Gravure Roller
  • Yes
  • PAPER COATING
  • Auto Exchange Rolls, Coating, Printing, Magnetic Tension Control, High Precision, High Speed, Low Energy Consumption

Trade Information

  • QINGDAO
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

White Top Paper Coating Paper Corrugated Paper Kraft Paper Fluting Paper Making Machine


Technical requirement

Main products Paper width 100-200g/m
Capacity 120t/d
Net paper width 3600mm
Wire width 4200mm
Working speed 300m/min
Design speed 350m/min
Gauge 4700 mm
Roll of dynamic balance G2.5
Cylinder of dynamic balance G4
Batch-off roll of dynamic balance G1.6
Drive mode AC motor variable frequency speed regulation segment drive
Layout of floor Monolayer
Pattern Left hand machine
Banner moisture difference ≤±1%
Banner quantitative difference ≤±1.5%



Brief Introduction

1. Net paper width is 3600mm, is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Sizing Machine, Back Dryer Section, Reeling Section.

2. Headbox:

Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.

3. Wire Section:

Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll, wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.

4. Press Section:

It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller, equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.

5. Front Dryer Section:

Φ1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.

6. Beveled Surface Sizing Machine:

Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.

7. Back Dryer Section:

Φ1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.

8. Reeling Section:

Pneumatic horizontal reeling machine.
