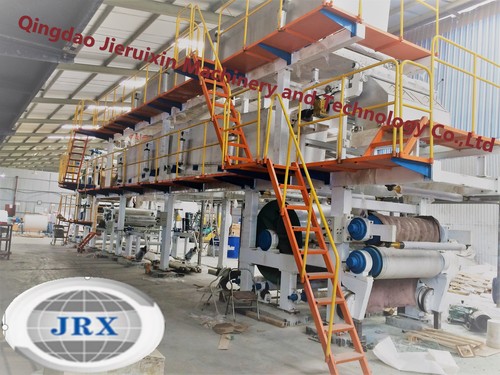

Hot thermal paper coating machine with PLC control

Hot thermal paper coating machine with PLC control

Product Details:

  • Product Type coating machine
  • General Use producing thermal paper
  • Material Stainless Steel
  • Type Paper Coating Machine
  • Coating Speed decided by the chosen transportation Km/s
  • Computerized Yes
  • Automatic Yes
  • Supply Ability : 60 Square Meter Per Year
100000.00 - 5000000.00 USD ($)/Set

Price And Quantity

  • 100000.00 - 5000000.00 USD ($)/Set
  • 1 Square Meter

Product Specifications

  • Electric
  • Yes
  • 30%deposit
  • Coating, Printing, Low Energy Consumption
  • customized
  • Yes
  • customerized Meter (m)
  • coating machine
  • Stainless Steel
  • Paper Coating Machine
  • decided by the chosen transportation Km/s
  • producing thermal paper
  • PLC Control

Trade Information

  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • 60 Square Meter Per Year
  • 2 Months
  • WOODEN or customized
  • Africa, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • CE, SGS

Product Description

Paper-unwinding stand using hydraulic  twin-roll paper-unwinding stand , equip with automatic splicer , replacement raw paper roll no need stop machine , provides efficiency and reduce paper damage probability.Drying system using double - sided blow drying box . paper uniformity be heated . avoid since uneven heating paper deformation , effect of paper quality .

Calender machine : after coating , paper get in calender machine , maximum extent improve paper gloss and smoothness . paper gloss average 65-85% , after calender machine , can improve to 90-95%.

Paper reeling machine using horizontal paper reeling machine , high speed , high quality roll paper .

Drive system using electric motor drive , speed control by frequency variation , speed accuracy , high stability.

Electrical control using electric cabinet and pneumatic valve ,  easy to operation and use .

Process: unwinding roll → scrape-knife coating device → three drying ovens (four meters each drying oven) →scrape-knife coating device → four drying ovens (four meters each drying oven) → back wet device → 3-φ1350 debugging mode Cylinder dryer→two roll calender machines →level rewinding roll device, please see process flow diagram

This machine adopts three 4 mhot air oven, oven a total length of 12 meters. The system includes hot air oven, heating fans, heat exchangers, thermometer and hot air ducts.
Heat oven to pneumatic open type oven, oven body is made of welded steel , insulation thickness of 80 mm , box packaging material selection, color steel plate, galvanized sheet inside the package chosen . Hot air nozzle is stainless steel making . Each oven is equipped with four guide rollers ,guide rollers with gear .
Air within the oven through the fan recycling, and add fresh air , the temperature of the air in the heat exchanger by regulating the steam pressure control .
